1.什么是ServiceService官网文档
我们使用前面学过的Deployment来运行我们的应用。因为在任何时刻，我们都不知道每个Pod的健康程度，因为Pod是个临时资源，Pod的创建和销毁是为了匹配Deployment的预期状态，Deployment可以动态地创建和销毁Pod。
同时每个Pod都会拥有自己的IP地址，如果Pod经常创建和销毁，那如何保证这个服务的Pod让别的服务进行服务发现并跟踪其要连接的IP地址，以便使其使用负载均衡的组件？

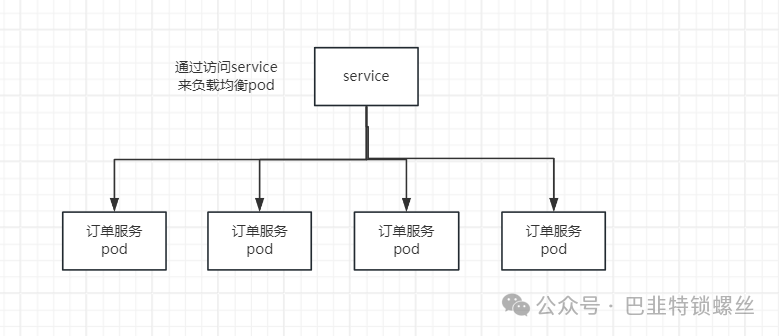

假设我们现在有一组订单服务，创建副本数为3，我们要把这3个pod当做一个Service让别的服务进行服务发现，因为pod是临时资源，ip经常发生变化，此时我们就要使用service，K8s中的service是将一组pod公开为网络服务的方法。
2.Service的使用
Service一般搭配Deployment一起使用，我们先创建一组Deployment。
apiVersion:apps/v1kind:Deploymentmetadata:name:my-nginxlabels:app:nginxspec:replicas:3selector:matchLabels:app:nginxtemplate:metadata:labels:app:nginxspec:containers:-name:nginximage:nginxports:-containerPort:80
然后通过service负载均衡访问上面这一组Pod
apiVersion:v1kind:Servicemetadata:name:my-nginxnamespace:defaultlabels:app:nginxspec:ports:-name:nginxprotocol:TCPport:80targetPort:80selector:app:nginxtype:ClusterIP#有好几种模式，下文会讲解

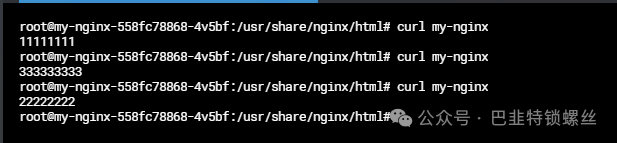

此时Service就会创建成功，我们在pod内通过curl my-nginx访问，就可以实现负载均衡。
额外补充： 此时我们整个服务的调用链路就变成了 Service->Deployment->Pod->jar。
3.Service的四种type
我们前面通过ClusterIp创建了service，service中type可选值如下，代表四种不同的服务发现类型。
ClusterIP(默认):
通过集群的内部IP暴露服务，选择该值时服务只能够在集群内部访问。这也是默认的ServiceType。
None会创建出没有ClusterIP的headless service（无头服务），Pod需要用服务的域名访问
type:ClusterIPClusterIP:手动指定/None/
NodePort:
通过每个节点上的IP和静态端口暴露服务。NodePort服务会路由到自动创建的ClusterIP服务，通过请求:，我们可以从集群的外部访问到一个NodePort服务。
如果将 type 字段设置为 NodePort ，则 Kubernetes 将在 --service-node-port-range 标志指定的范围内分配端口（默认值：30000-32767）
K8s集群的所有机器都将打开监听这个端口的数据，访问任何一个机器，都可以访问这个service对应的pod。

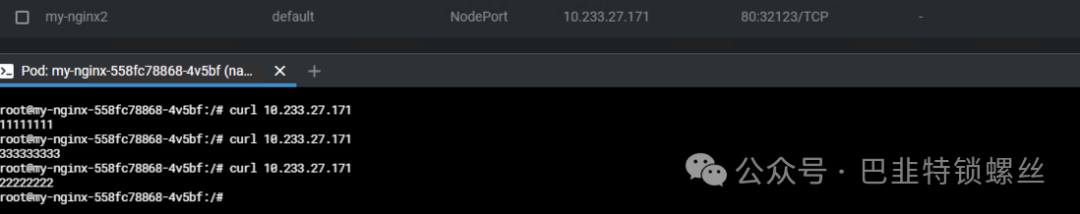

使用nodePort自定义端口
apiVersion:v1kind:Servicemetadata:name:my-nginx2namespace:defaultlabels:app:nginxspec:ports:-name:nginxprotocol:TCPport:80targetPort:80nodePort:32123selector:app:nginxtype:NodePort
LoadBalancer:在集群外部再做一个负载均衡设备，而这个设备需要外部环境的支持，外部服务发送到这个设备商的请求，会被设备负载后转发到集群中。
apiVersion:v1kind:Servicemetadata:name:loadbalancer-servicespec:type:LoadBalancerselector:app:nginx#只想DaemonSetports:-protocol:TCPport:80targetPort:80
ExternalName可以将服务映射到 externalName 字段的内容的域名，但是要注意跨域，一般不用。
apiVersion:v1kind:Servicemetadata:name:my-nginx3namespace:defaultlabels:app:nginxspec:ports:-name:nginxprotocol:TCPport:80targetPort:80selector:app:nginxtype:ExternalNameexternalName:www.baidu.com
4.什么是Ingress什么是ingress官网文档
我们可以使用Service对外暴露服务，但如果直接使用Service对外暴露访问端口，我们会有如下的一些问题：
Service可以使用NodePort暴露集群对外访问端口，但是性能底下不安全。
缺少统一访问入口，可以负载均衡，限流等等
因为有上述缺点，所以Ingress出现了。
Ingress是K8s中的一种资源对象，用于管理从集群外部访问集群内部的HTTP和HTTPS路由。流量路由由 Ingress 资源所定义的规则来控制。
通过配置，Ingress可为Service提供外部可访问的URL，对其流量作为负载均衡。
5.Ingress的安装
我们需要拥有一个Ingress控制器才能满足Ingress的要求，仅仅创建Ingress资源本身并没有任何效果，我们使用kubectl apply -f ingress.yaml 使用下面的文件内容就可以创建了。
apiVersion:v1kind:Namespacemetadata:name:ingress-nginxlabels:app:ingress-nginx---apiVersion:v1kind:ServiceAccountmetadata:name:nginx-ingress-controllernamespace:ingress-nginxlabels:app:ingress-nginx---apiVersion:rbac.authorization.k8s.io/v1kind:ClusterRolemetadata:name:nginx-ingress-controllerlabels:app:ingress-nginxrules:-apiGroups:-""resources:-configmaps-endpoints-nodes-pods-secrets-namespaces-servicesverbs:-get-list-watch-apiGroups:-"extensions"-"networking.k8s.io"resources:-ingressesverbs:-get-list-watch-apiGroups:-""resources:-eventsverbs:-create-patch-apiGroups:-"extensions"-"networking.k8s.io"resources:-ingresses/statusverbs:-update-apiGroups:-""resources:-configmapsverbs:-create-apiGroups:-""resources:-configmapsresourceNames:-"ingress-controller-leader-nginx"verbs:-get-update---apiVersion:rbac.authorization.k8s.io/v1kind:ClusterRoleBindingmetadata:name:nginx-ingress-controllerlabels:app:ingress-nginxroleRef:apiGroup:rbac.authorization.k8s.iokind:ClusterRolename:nginx-ingress-controllersubjects:-kind:ServiceAccountname:nginx-ingress-controllernamespace:ingress-nginx---apiVersion:v1kind:Servicemetadata:labels:app:ingress-nginxname:nginx-ingress-lbnamespace:ingress-nginxspec:# DaemonSet need:# ----------------type:ClusterIP# ----------------# Deployment need:# ----------------# type: NodePort# ----------------ports:-name:httpport:80targetPort:80protocol:TCP-name:httpsport:443targetPort:443protocol:TCP-name:metricsport:10254protocol:TCPtargetPort:10254selector:app:ingress-nginx---kind:ConfigMapapiVersion:v1metadata:name:nginx-configurationnamespace:ingress-nginxlabels:app:ingress-nginxdata:keep-alive:"75"keep-alive-requests:"100"upstream-keepalive-connections:"10000"upstream-keepalive-requests:"100"upstream-keepalive-timeout:"60"allow-backend-server-header:"true"enable-underscores-in-headers:"true"generate-request-id:"true"http-redirect-code:"301"ignore-invalid-headers:"true"log-format-upstream:'{"@timestamp": "$time_iso8601","remote_addr": "$remote_addr","x-forward-for": "$proxy_add_x_forwarded_for","request_id": "$req_id","remote_user": "$remote_user","bytes_sent": $bytes_sent,"request_time": $request_time,"status": $status,"vhost": "$host","request_proto": "$server_protocol","path": "$uri","request_query": "$args","request_length": $request_length,"duration": $request_time,"method": "$request_method","http_referrer": "$http_referer","http_user_agent": "$http_user_agent","upstream-sever":"$proxy_upstream_name","proxy_alternative_upstream_name":"$proxy_alternative_upstream_name","upstream_addr":"$upstream_addr","upstream_response_length":$upstream_response_length,"upstream_response_time":$upstream_response_time,"upstream_status":$upstream_status}'max-worker-connections:"65536"worker-processes:"2"proxy-body-size:20mproxy-connect-timeout:"10"proxy_next_upstream:errortimeouthttp_502reuse-port:"true"server-tokens:"false"ssl-ciphers:ECDHE-RSA-AES128-GCM-SHA256:ECDHE-ECDSA-AES128-GCM-SHA256:ECDHE-RSA-AES256-GCM-SHA384:ECDHE-ECDSA-AES256-GCM-SHA384:DHE-RSA-AES128-GCM-SHA256:DHE-DSS-AES128-GCM-SHA256:kEDH+AESGCM:ECDHE-RSA-AES128-SHA256:ECDHE-ECDSA-AES128-SHA256:ECDHE-RSA-AES128-SHA:ECDHE-ECDSA-AES128-SHA:ECDHE-RSA-AES256-SHA384:ECDHE-ECDSA-AES256-SHA384:ECDHE-RSA-AES256-SHA:ECDHE-ECDSA-AES256-SHA:DHE-RSA-AES128-SHA256:DHE-RSA-AES128-SHA:DHE-DSS-AES128-SHA256:DHE-RSA-AES256-SHA256:DHE-DSS-AES256-SHA:DHE-RSA-AES256-SHA:AES128-GCM-SHA256:AES256-GCM-SHA384:AES128-SHA256:AES256-SHA256:AES128-SHA:AES256-SHA:AES:CAMELLIA:DES-CBC3-SHA:!aNULL:!eNULL:!EXPORT:!DES:!RC4:!MD5:!PSK:!aECDH:!EDH-DSS-DES-CBC3-SHA:!EDH-RSA-DES-CBC3-SHA:!KRB5-DES-CBC3-SHAssl-protocols:TLSv1TLSv1.1TLSv1.2ssl-redirect:"false"worker-cpu-affinity:auto---kind:ConfigMapapiVersion:v1metadata:name:tcp-servicesnamespace:ingress-nginxlabels:app:ingress-nginx---kind:ConfigMapapiVersion:v1metadata:name:udp-servicesnamespace:ingress-nginxlabels:app:ingress-nginx---apiVersion:apps/v1kind:DaemonSetmetadata:name:nginx-ingress-controllernamespace:ingress-nginxlabels:app:ingress-nginxannotations:component.version:"v0.30.0"component.revision:"v1"spec:# Deployment need:# ----------------# replicas: 1# ----------------selector:matchLabels:app:ingress-nginxtemplate:metadata:labels:app:ingress-nginxannotations:prometheus.io/port:"10254"prometheus.io/scrape:"true"scheduler.alpha.kubernetes.io/critical-pod:""spec:# DaemonSet need:# ----------------hostNetwork:true# ----------------serviceAccountName:nginx-ingress-controllerpriorityClassName:system-node-criticalaffinity:podAntiAffinity:preferredDuringSchedulingIgnoredDuringExecution:-podAffinityTerm:labelSelector:matchExpressions:-key:appoperator:Invalues:-ingress-nginxtopologyKey:kubernetes.io/hostnameweight:100nodeAffinity:requiredDuringSchedulingIgnoredDuringExecution:nodeSelectorTerms:-matchExpressions:-key:typeoperator:NotInvalues:-virtual-kubeletcontainers:-name:nginx-ingress-controllerimage:registry.cn-beijing.aliyuncs.com/acs/aliyun-ingress-controller:v0.30.0.2-9597b3685-aliyunargs:-/nginx-ingress-controller---configmap=$(POD_NAMESPACE)/nginx-configuration---tcp-services-configmap=$(POD_NAMESPACE)/tcp-services---udp-services-configmap=$(POD_NAMESPACE)/udp-services---publish-service=$(POD_NAMESPACE)/nginx-ingress-lb---annotations-prefix=nginx.ingress.kubernetes.io---enable-dynamic-certificates=true---v=2securityContext:allowPrivilegeEscalation:truecapabilities:drop:-ALLadd:-NET_BIND_SERVICErunAsUser:101env:-name:POD_NAMEvalueFrom:fieldRef:fieldPath:metadata.name-name:POD_NAMESPACEvalueFrom:fieldRef:fieldPath:metadata.namespaceports:-name:httpcontainerPort:80-name:httpscontainerPort:443livenessProbe:failureThreshold:3httpGet:path:/healthzport:10254scheme:HTTPinitialDelaySeconds:10periodSeconds:10successThreshold:1timeoutSeconds:10readinessProbe:failureThreshold:3httpGet:path:/healthzport:10254scheme:HTTPperiodSeconds:10successThreshold:1timeoutSeconds:10# resources:# limits:# cpu: "1"# memory: 2Gi# requests:# cpu: "1"# memory: 2GivolumeMounts:-mountPath:/etc/localtimename:localtimereadOnly:truevolumes:-name:localtimehostPath:path:/etc/localtimetype:FilenodeSelector:boge/ingress-controller-ready:"true"tolerations:-operator:ExistsinitContainers:-command:-/bin/sh--c-| mount -o remount rw /proc/sys sysctl -w net.core.somaxconn=65535 sysctl -w net.ipv4.ip_local_port_range="1024 65535" sysctl -w fs.file-max=1048576 sysctl -w fs.inotify.max_user_instances=16384 sysctl -w fs.inotify.max_user_watches=524288 sysctl -w fs.inotify.max_queued_events=16384image:registry.cn-beijing.aliyuncs.com/acs/busybox:v1.29.2imagePullPolicy:Alwaysname:init-sysctlsecurityContext:privileged:trueprocMount:Default---## Deployment need for aliyun'k8s:#apiVersion: v1#kind: Service#metadata:# annotations:# service.beta.kubernetes.io/alibaba-cloud-loadbalancer-id: "lb-xxxxxxxxxxxxxxxxxxx"# service.beta.kubernetes.io/alibaba-cloud-loadbalancer-force-override-listeners: "true"# labels:# app: nginx-ingress-lb# name: nginx-ingress-lb-local# namespace: ingress-nginx#spec:# externalTrafficPolicy: Local# ports:# - name: http# port: 80# protocol: TCP# targetPort: 80# - name: https# port: 443# protocol: TCP# targetPort: 443# selector:# app: ingress-nginx# type: LoadBalancer6.Ingress的使用
apiVersion:networking.k8s.io/v1beta1kind:Ingressmetadata:name:my-nginx-ingressnamespace:defaultannotations:nginx.ingress.kubernetes.io/rewrite-target:/nginx.ingress.kubernetes.io/client-max-body-size:10Mnginx.ingress.kubernetes.io/proxy-body-size:10Mnginx.ingress.kubernetes.io/proxy-connect-timeout:'300'nginx.ingress.kubernetes.io/proxy-read-timeout:'300'nginx.ingress.kubernetes.io/proxy-send-timeout:'300'spec:rules:-host:nginx.local## 可以修改本地hosts文件，将服务地地址指向 nginx.localhttp:paths:-path:/backend:## 指定需要响应的后端服务serviceName:my-nginx## kubernetes集群的svc名称 servicePort:80## service的端口号

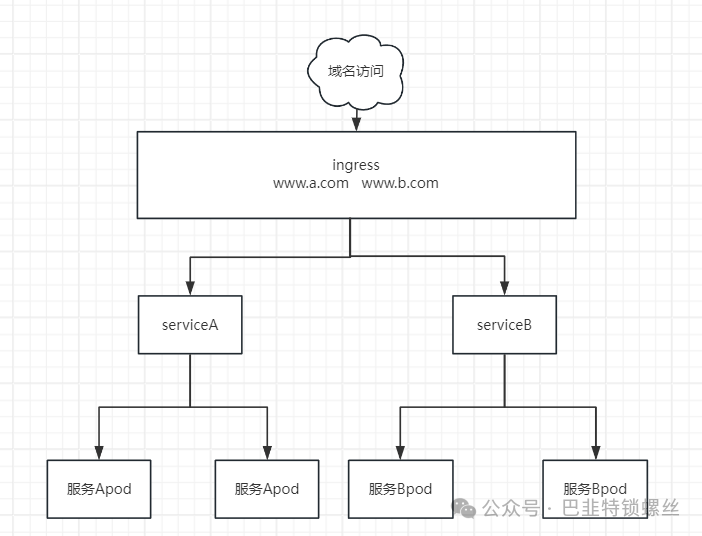

通过访问nginx.local，我们的整个调用链路就是：
域名--->ingress--->service--->pod--->具体服务
