Nginx加载https模块，并配置自行颁发的SSL证书【测试成功】

艺帆风顺 发布于 2025-04-02 62 次阅读

，一、检查是否安装SSL模块

    nginx -V   #没有弹出--with-http_ssl_module相关信息则表示不支持https

[root@host-192-168-66-18 ~]# /usr/local/nginx/sbin/nginx -Vnginx version: nginx/1.24.0built by gcc 7.3.0 (GCC) configure arguments: --prefix=/usr/local/nginx

二、原有配置加载https模块

    1、安装SSL依赖环境

        yum install openssl openssl-devel

    2、切换到源码解压目录

        cd  /usr/local/nginx/nginx-1.24.0

        重新编译：

./configure --prefix=/usr/local/nginx --conf-path=/usr/local/nginx/conf/nginx.conf --pid-path=/usr/local/nginx/conf/nginx.pid --lock-path=/usr/local/nginx/lock/nginx.lock./configure --prefix=/usr/local/nginx --conf-path=/usr/local/nginx/conf/nginx.conf --pid-path=/usr/local/nginx/conf/nginx.pid --lock-path=/usr/local/nginx/lock/nginx.lock --with-http_ssl_module

3、执行make

    此处不要执行make install ，否则会覆盖安装。

4、覆盖nginx执行文件

    cp /usr/local/nginx/sbin/nginx /usr/local/nginx/sbin/nginx.bak

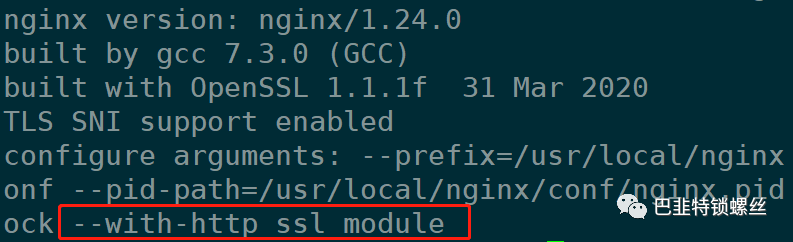

5、再次查看是否加载成功，弹出SSL信息则加载成功

    /usr/local/nginx/sbin/nginx -V

[root@host-192-168-66-18 sbin]# /usr/local/nginx/sbin/nginx -Vnginx version: nginx/1.24.0built by gcc 7.3.0 (GCC) built with OpenSSL 1.1.1f  31 Mar 2020TLS SNI support enabledconfigure arguments: --prefix=/usr/local/nginx --conf-path=/usr/local/nginx/conf/nginx.conf --pid-path=/usr/local/nginx/conf/nginx.pid --lock-path=/usr/local/nginx/lock/nginx.lock --with-http_ssl_module

三、配置https

1、生成ssl证书（略）

2、查看nginx配置文件（未使用https）

server {    listen 80;    client_max_body_size 600M;    fastcgi_buffers 8 4K;    fastcgi_buffer_size 4K;    client_body_buffer_size 1024k;    root /data/zhdj/frontends/dist;
    location / {        try_files $uri $uri/ /index.html;        index index.html;    }   location ^~ /api/ {#        proxy_pass http://sw-chatbot.tumorcompass.com;        proxy_set_header Host "sw-chatbot.tumorcompass.com";        proxy_set_header X-Real-IP $remote_addr;        proxy_set_header X-Forwarded-For $proxy_add_x_forwarded_for;    }
    location ^~ /oauth2/ {        proxy_pass http://183.67.4.66:8868;    }
    location ^~ /yinling/ {        default_type application/json;        add_header Content-Type 'application/json; charset=utf-8';        if ($request_method = 'OPTIONS') {            add_header Access-Control-Allow-Origin *;            add_header Access-Control-Allow-Methods GET,POST,PUT,DELETE,OPTIONS;            add_header Access-Control-Allow-Headers X-Requested-With,Content-Type,Authorization;            return 204;        }        if ($request_method != 'OPTIONS') {            add_header Access-Control-Allow-Origin *;            add_header Access-Control-Allow-Headers X-Requested-With,Content-Type,Authorization;            add_header Access-Control-Allow-Methods GET,POST,PUT,DELETE,OPTIONS;            proxy_pass http://119.29.146.251:9500;        }        proxy_set_header X-Forwarded-For $proxy_add_x_forwarded_for;        proxy_set_header X-Forwarded-Proto $scheme;        proxy_set_header X-Forwarded-Port $server_port;        proxy_set_header Host "ptbd-admin.erp12580.com";        proxy_connect_timeout 1200s;        proxy_send_timeout 1200s;        proxy_read_timeout 1200s;    }

    location @router {        rewrite ^.*$ /index.html last;    }
    error_page 500 502 503 504 /50x.html;
    location = /50x.html {        root html;    }}

3、加入Https配置文件内容：

server {    listen 443 ssl;    client_max_body_size 600M;    fastcgi_buffers 8 4K;    fastcgi_buffer_size 4K;    client_body_buffer_size 1024k;    root /data/zhdj/frontends/dist;
    ssl_certificate      /data/nginx/ssl/zhdj.crt;    ssl_certificate_key  /data/nginx/ssl/zhdj.key;
    location / {        try_files $uri $uri/ /index.html;        index index.html;    }
    # 其他 location 配置...
    location ^~ /api/ {        proxy_pass http://sw-chatbot.tumorcompass.com;        proxy_set_header Host "sw-chatbot.tumorcompass.com";        proxy_set_header X-Real-IP $remote_addr;        proxy_set_header X-Forwarded-For $proxy_add_x_forwarded_for;    }
    location ^~ /oauth2/ {        proxy_pass http://183.67.4.66:8868;    }
    location ^~ /yinling/ {        default_type application/json;        add_header Content-Type 'application/json; charset=utf-8';        if ($request_method = 'OPTIONS') {            add_header Access-Control-Allow-Origin *;            add_header Access-Control-Allow-Methods GET,POST,PUT,DELETE,OPTIONS;            add_header Access-Control-Allow-Headers X-Requested-With,Content-Type,Authorization;            return 204;        }        if ($request_method != 'OPTIONS') {            add_header Access-Control-Allow-Origin *;            add_header Access-Control-Allow-Headers X-Requested-With,Content-Type,Authorization;            add_header Access-Control-Allow-Methods GET,POST,PUT,DELETE,OPTIONS;            proxy_pass http://119.29.146.251:9500;        }        proxy_set_header X-Forwarded-For $proxy_add_x_forwarded_for;        proxy_set_header X-Forwarded-Proto $scheme;        proxy_set_header X-Forwarded-Port $server_port;        proxy_set_header Host "ptbd-admin.erp12580.com";        proxy_connect_timeout 1200s;        proxy_send_timeout 1200s;        proxy_read_timeout 1200s;    }
    location @router {        rewrite ^.*$ /index.html last;    }
    error_page 500 502 503 504 /50x.html;
    location = /50x.html {        root html;    }}

此时，实现了

http://192.168.3.200和https://192.168.3.200地址的共存访问。

四、将80端口的http流量全部转发到https

    新建nginx配置文件：

server {    listen 80;    server_name 127.0.0.1;
    rewrite ^(.*)$ https://192.168.3.200/login permanent;}

    实现了80端口过来的所有流量，转发到https://192.168.3.200/login
