filebeat日志收集工具的安装以及配置nginx日志采集【测试成功】

艺帆风顺 发布于 2025-04-03 39 次阅读

一、filebeat概述

    Filebeat是一个轻量型日志采集器，它是Elasticsearch stack里面的一员。这款工具是使用Golang实现的，本质上是一个代理程序，可以安装在各个节点上，根据配置读取对应位置的日志，并上报到相应的地方去。它可以方便地与kibana集成，启动filebeat后，可以直接在kibana中观看对日志文件进行detail的过程。

二、filebeat的安装与配置

   采用rpm方式进行安装

curl -L -O https://artifacts.elastic.co/downloads/beats/filebeat/filebeat-7.0.1-x86_64.rpm
rpm -vi filebeat-7.0.1-x86_64.rpm


 配置

vim /etc/filebeat/filebeat.yml

分为input和output配置

    filebeat.inputs:- type: log enabled: true paths: - /var/log/nginx/io.log fields: type: www_access fields_under_root: truesetup.template.settings: index.number_of_shards: 1output.redis: hosts: ["127.0.0.1:6379"] key: "nginx" keys: - key: "%{[type]}"processors: - add_host_metadata: ~  - add_cloud_metadata: ~

    三、启动与报错处理

    启动：systemctl start filebeat

      [root@ELK-Master bin]# systemctl restart filebeat[root@ELK-Master bin]# systemctl status filebeat● filebeat.service - Filebeat sends log files to Logstash or directly to Elasticsearch. Loaded: loaded (/usr/lib/systemd/system/filebeat.service; disabled; vendor preset: disabled) Active: failed (Result: exit-code) since Tue 2023-11-07 10:56:54 CST; 4s ago Docs: https://www.elastic.co/products/beats/filebeat Process: 9170 ExecStart=/usr/share/filebeat/bin/filebeat $BEAT_LOG_OPTS $BEAT_CONFIG_OPTS $BEAT_PATH_OPT> Main PID: 9170 (code=exited, status=1/FAILURE)
      11月 07 10:56:54 ELK-Master systemd[1]: filebeat.service: Service RestartSec=100ms expired, scheduling res>11月 07 10:56:54 ELK-Master systemd[1]: filebeat.service: Scheduled restart job, restart counter is at 5.11月 07 10:56:54 ELK-Master systemd[1]: Stopped Filebeat sends log files to Logstash or directly to Elasti>11月 07 10:56:54 ELK-Master systemd[1]: filebeat.service: Start request repeated too quickly.11月 07 10:56:54 ELK-Master systemd[1]: filebeat.service: Failed with result 'exit-code'.11月 07 10:56:54 ELK-Master systemd[1]: Failed to start Filebeat sends log files to Logstash or directly t>

      报错排查：

          运行filebeat test config 命令来验证配置文件是否存在语法错误。

        [root@ELK-Master bin]# filebeat test configExiting: error unpacking config data: more than one namespace configured accessing 'output' (source:'/etc/filebeat/filebeat.yml')

        原因：存在俩个output输出，修改配置文件，进行注释。

        [root@ELK-Master bin]# filebeat test config

        Config OK

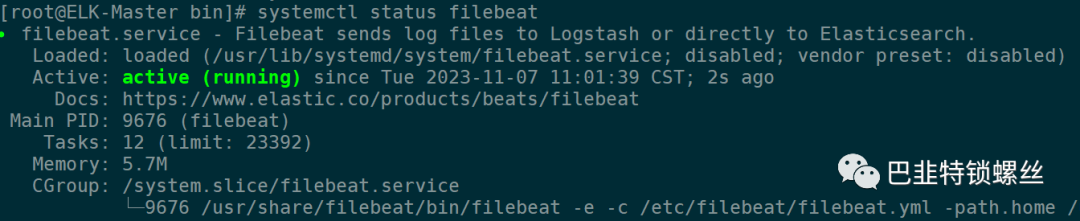

          [root@ELK-Master bin]# vim /etc/filebeat/filebeat.yml[root@ELK-Master bin]# filebeat test configConfig OK[root@ELK-Master bin]# systemctl restart filebeat[root@ELK-Master bin]# systemctl status filebeat● filebeat.service - Filebeat sends log files to Logstash or directly to Elasticsearch. Loaded: loaded (/usr/lib/systemd/system/filebeat.service; disabled; vendor preset: disabled) Active: active (running) since Tue 2023-11-07 11:01:39 CST; 2s ago Docs: https://www.elastic.co/products/beats/filebeat Main PID: 9676 (filebeat) Tasks: 12 (limit: 23392) Memory: 5.7M CGroup: /system.slice/filebeat.service └─9676 /usr/share/filebeat/bin/filebeat -e -c /etc/filebeat/filebeat.yml -path.home /usr/share/>
